Master the creation and use of Dynamic Blocks in AutoCAD 2010. Dynamic blocks streamline and simplify the insertion of symbols or template drawings. In previous AutoCAD versions it was necessary to employ different blocks and additional tools to define variations and placement. Now in this new version of AutoCAD, it is possible to define a block sensitive to context and parametrics, in such a way as when they are added, existent geometries adjust and are easily modified. The AutoCAD 2010 Dynamic Blocks course provides mechanical and architectural examples. It features the creation of intelligent block libraries to optimize your project design.
Objetivos
- Introduce to AutoCAD users the advantages of working with dynamic blocks and parameterized blocks
- Teach the required tools for creating blocks which can be easily placed in projects
- Demonstrate geometric and dimensional constraints effectively to enrich the concept of blocks
- Use tables to easily and quickly create part families
A quem se destina
- CAD Designers
- Architects
- Interior Decorators
In this course we teach how to easily use and put into practice the application and creation of Dynamic Blocks in AutoCAD 2010. The new block editor is introduced and shows how to apply actions and parametric relationships, as well as several recommendations focused on application possibilities even in the first classes. We wish you excellent learning results.
Módulo 1
Characteristics and Functionalities
We will learn about the difference between dynamic block and common block characteristics and functionalities, navigate in the block editor interface, understand how dynamic blocks behave, and differentiate parameters and actions. Dynamic blocks make AutoCAD different from other design programs as it streamlines design work and enables the user to interchange standardized blocks precisely and dependably.

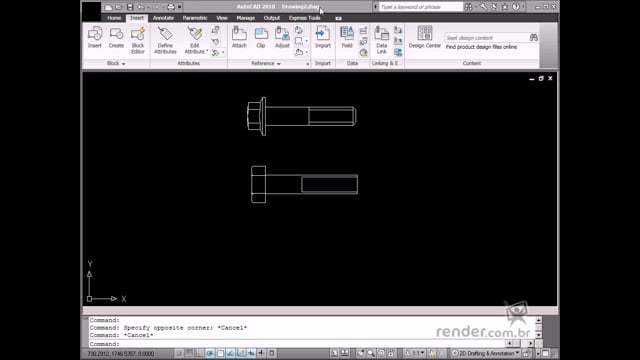

| Aulas deste módulo | |
|---|
| 1 | | Differences between the traditional and dynamic block - Characteristics and advantages | 00:04:05 |

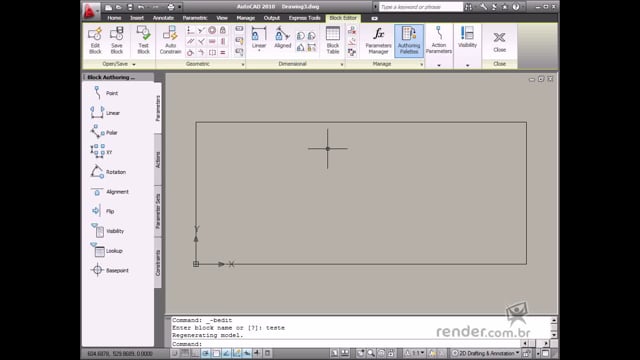

| 2 | | Block editor interface and settings - Organizing commands and functionalities | 00:04:26 |
| 3 | | Learning about Dynamic Block Parameters - Parameters: Linear, Rotate, Flip, Visibility | 00:05:21 |
| 4 | | Learning about Dynamic Block Actions - Actions: Stretch, Flip, Array... | 00:04:00 |
| 5 | | Practical example - Applying dynamic blocks in a floor plan | 00:05:31 |
| 6 | | Complementary exercise - Inserting blocks in a mechanical project | |
